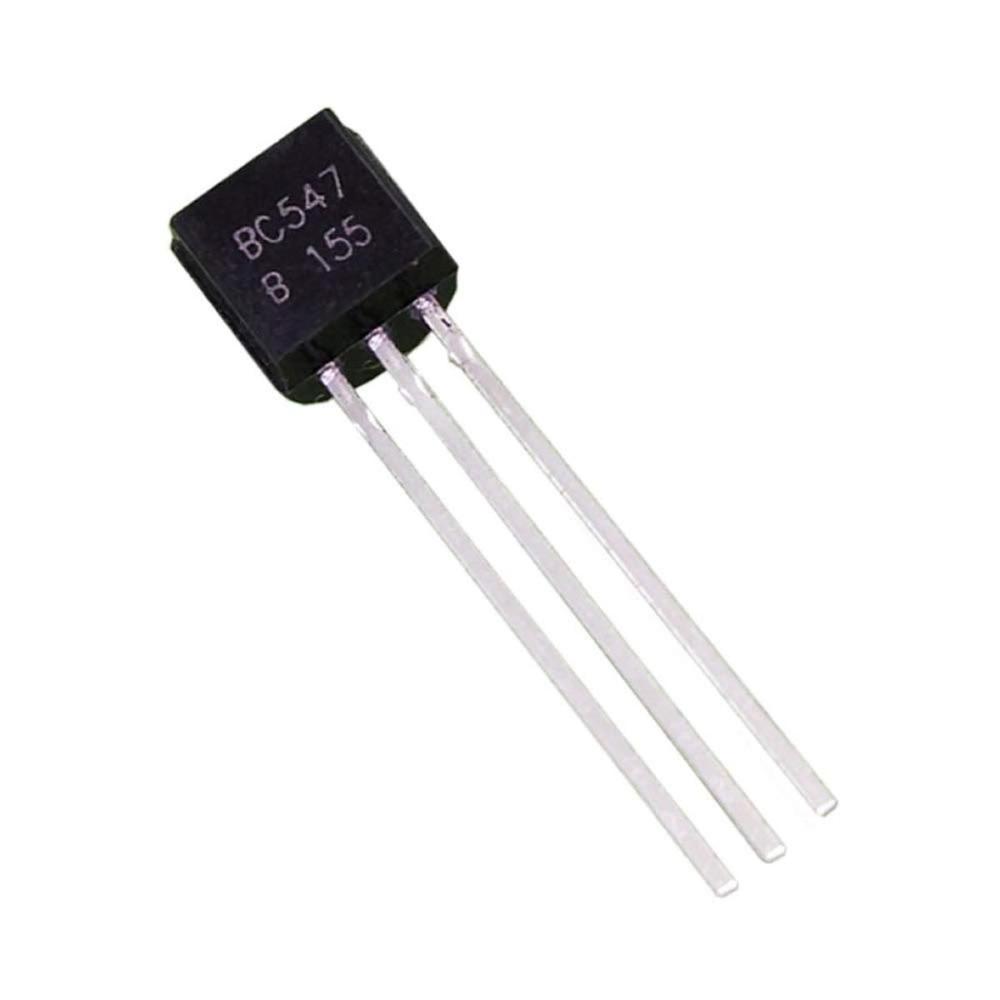

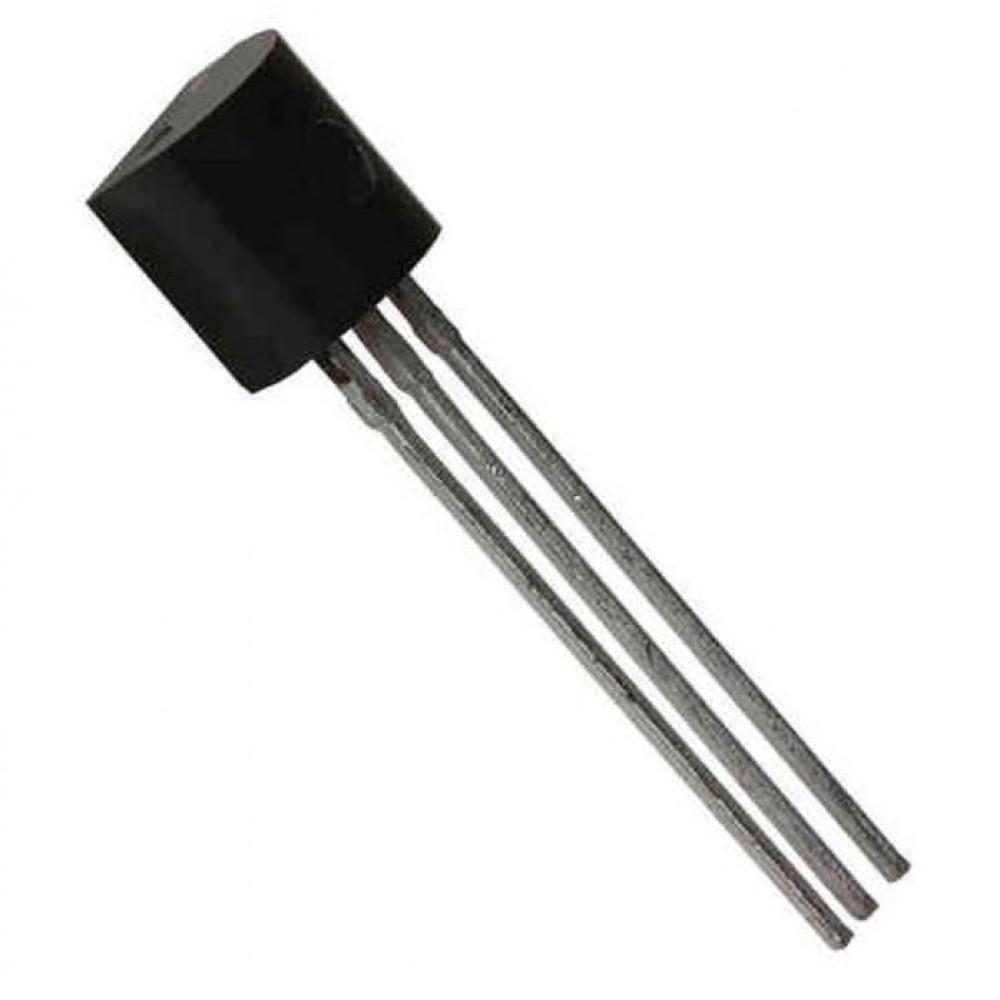

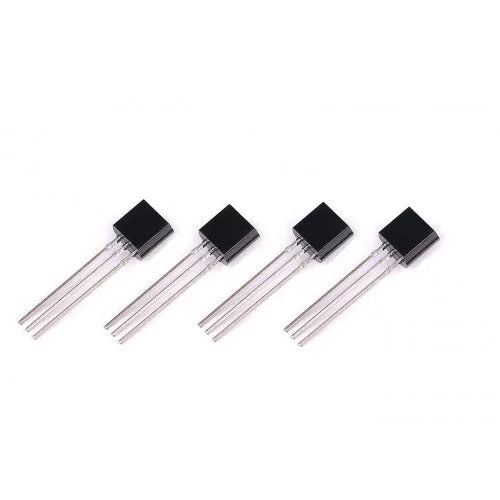

BC547 NPN Transistor
Pickup available at Sarvodaya Nagar Indira Nagar
Usually ready in 24 hours
Specification
Maximum Collector-Emitter Voltage (Vceo): 45V
Maximum Collector-Base Voltage (Vcbo): 50V
Maximum Emitter-Base Voltage (Vebo): 6V
Maximum Collector Current (Ic): 100mA
DC Current Gain (hfe): 110 – 800
Power Dissipation (Pd): 500mW
Transition Frequency (ft): 150MHz
Operating Temperature Range: -55°C to +150°C
Package Type: TO-92
Description
The BC547 is a general-purpose NPN bipolar junction transistor commonly used in electronic circuits for amplification and switching applications. Here are some technical specifications of the BC547 transistor:
1. Maximum Collector-Emitter Voltage (Vceo): 45V
2. Maximum Collector-Base Voltage (Vcbo): 50V
3. Maximum Emitter-Base Voltage (Vebo): 6V
4. Maximum Collector Current (Ic): 100mA
5. DC Current Gain (hfe): 110 – 800
6. Power Dissipation (Pd): 500mW
7. Transition Frequency (ft): 150MHz
8. Operating Temperature Range: -55°C to +150°C
9. Package Type: TO-92
Note that the above specifications are for a BC547 transistor with a standard tolerance of ±5%, and actual specifications may vary depending on the manufacturer and specific part number. It’s always important to consult the datasheet of a particular component for precise information.
